Fabrication and Manufacturing Services

NRG Blender 2 Piece Tub

Industrial refinery plant with multiple towers and pipelines under a clear blue sky.

2 Piece design
Removable/replaceable inner liner
Internal fully 2 part ceramic coated

Discharginator Suction and Discharge Manifold

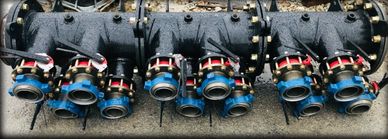

A row of industrial valves with blue flanges and black bodies.

•MODULAR INTERCHANGEABLE MANIFOLD DESIGNS IN 12” & 14”

•4”, 6”, 8”, & 10” SLEEVED OUTLETS/INLETS

•ALL XH SEAMLESS PIPE

•ALL ROTARY CNC CUT HOLES & COPES – INTERNALLY BACK WELDED

•ALL FITTING TO FLANGE CONNECTIONS WELDED & GROUND SEAMLESS

•ALL INTERNAL SURFACES 100% 2 PART CERAMIC LINED

• REBUILDABLE AND RELINEABLE LONG TERM ASSET

Discharginator Filtration System

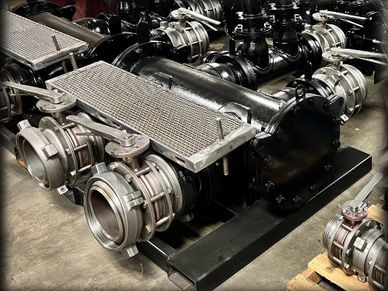

Industrial pump system with multiple connected pipes and valves on a workshop floor.

•SKID MOUNTED CUSTOMIZABLE DESIGN •14” HEADER WITH 6”,8”, & 10” PORTS AVAILABLE •FABRICATED WITH SAME TECHNOLOGY AS DISCHARGINATOR

DISCHARGE MANIFOLDS FOR LONG SERVICE LIFE

USEABLE ON CLEAN INLET SIDE & POST DISCHARGE PUMP SIDE OF BLENDER

•CUSTOM DOUBLE WALL STAINLESS WIRE MESH REPLACEABLE FILTER

•ISOLATE & CHANGE/REPLACE FILTER IN MINUTES

•Blender Backup and Bypass manifold inlet/outlets available

Mega Filter Filtration System

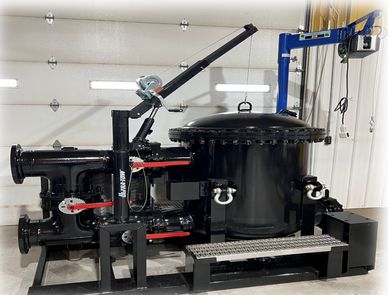

Industrial black machinery with pipes and valves in a workshop.

Skid Mounted Design
8" and 10" Configurations available
Integrated Bypass
60"X 84" footprint
Rated to XXX BPM
Custom Fab Screens available down to .13 opening
Discharginator technology to increase life
Internals fully 2 Part Ceramic Coated

52" and 60" Zoominator Suction Manifold

52" and 60" Zoominator Suction Manifold

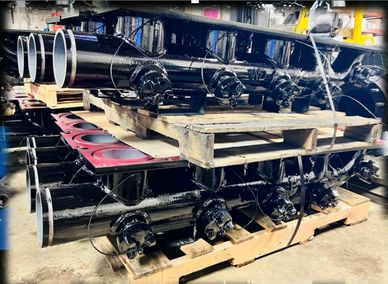

Stacked black industrial pipes on wooden pallets in a warehouse.

52" and 60" models available
Slotted holes to accommodate all fluid end oems
Integrated Fork Pocket Slots
All seamless pipe utilized
Internally backwelded
Internally 2 part Ceramic Coated
